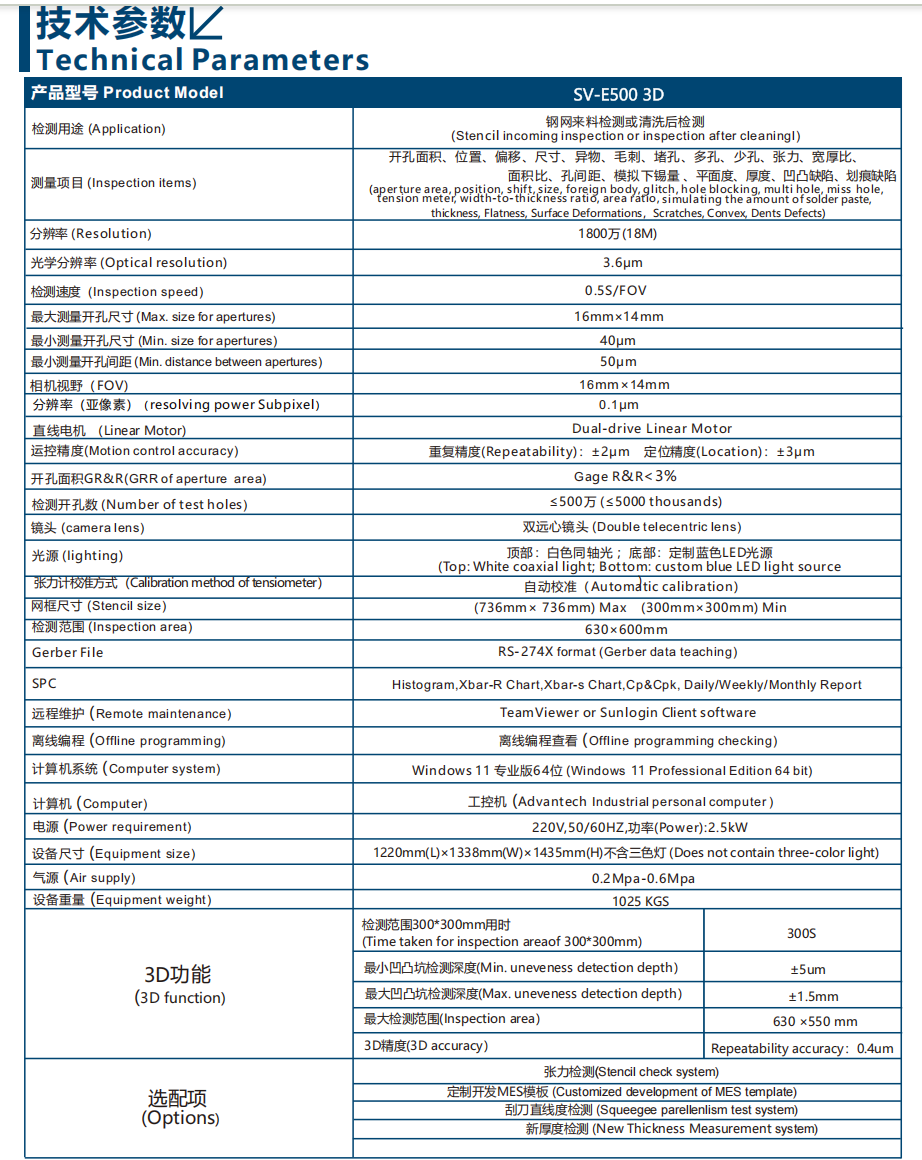

技术参数
TechnicalParameters
产品型号 Product Model
3D Automatic Stencil Inspection Machine SV-E500 3D
检测用途 (Application)
钢网来料检测或清洗后检测:(Stencil incoming inspection or inspection after cleaningl)
测量项目 (Inspection items):开孔面积,位置,偏移,尺寸,异物,毛刺,堵孔,多孔,少孔,张力,厚度
(aperture area, position, shift, size, foreign body, glitch, hole blocking, multi
hole, miss hole, tension meter, thickness, Flatness, Surface Deformations,Scratches, Convex, Dents Defects)
相机 (Camera):标配(Standard):carmera1800万(18M)
光学分辨率 (Optical resolution):3.6μm
每FOV时间 (Inspection time per FOV)
1800万:0.5S/FOV
最大测量开孔尺寸 (Max. size for apertures):16mm×14mm
最小测量开孔尺寸 (Min. size for apertures):40μm
最小测量开孔间距 (Min. distance between apertures):50μm
FOV:16mm×14mm
直线电机(Linear Motor: Dual-Drive Linear Motor
运控精度(Motion control accuracy)
重复精度(Repeatability):±2μm 定位精度(Location):±3μm
开孔面积GRR(GRR of aperture area)
GageR&R<5%
检测开孔数 (Number of test holes):≤50万 (≤5000 thousands thousands)
镜头 (camera lens):双远心镜头 (Double telecentric lens)
光源 (Iighting):顶部:白色同轴光 ；底部:定制蓝色LED光源 (Top: White coaxial light; Bottom: custom blue LED light source)
张力计校准方式(Calibration method of tensiometer):自动校准(Automatic calibration)
网框尺寸 (Stencil size): (736mm×736mm) Max (300mm×300mm) Min
检测范围 (Inspectionarea):630×600mm
Gerber File:RS-274X format (Gerber data teaching)
SPC:Histogram,Xbar-R Chart,Xbar-s Chart,Cp&Cpk, Daily/Weekly/Monthly Report
远程维护 (Remotemaintenance):TeamViewer software /Anydesk or Sunlogin software
离线编程查看 (Offlineprogramming checking):离线编程 (Offlineprogramming)
计算机系统 (Computer system):Win11 专业版64位 (Win11 ProfessionalEdition 64 bit)
计算机 (Computer):工控机 (Industrial personal computer )
电源 (Powerrequirement):220V,50/60HZ,功率(Power):2.5kW
设备尺寸 (Equipmentsize):1130mm(L)×1215mm(W)×1500mm(H)不含三色灯 (Does not contain three-color light)
气源 (Airsupply):0.2Mpa-0.6Mpa
设备重量 (Equipmentweight):1025KG
Options:
张力检测系统 (Tension Inspection System)
定制开发MES模板 (Customizeddevelopment of MES template)
刮刀直线度检测 (Squeegeeparellenlismtest)
钢网信息管理系统(SSMS)(Smart Stencil Management System)
钢网厚度检测(Thickness Inspection System)
|
